DCP-E-ILA-VG

Product information

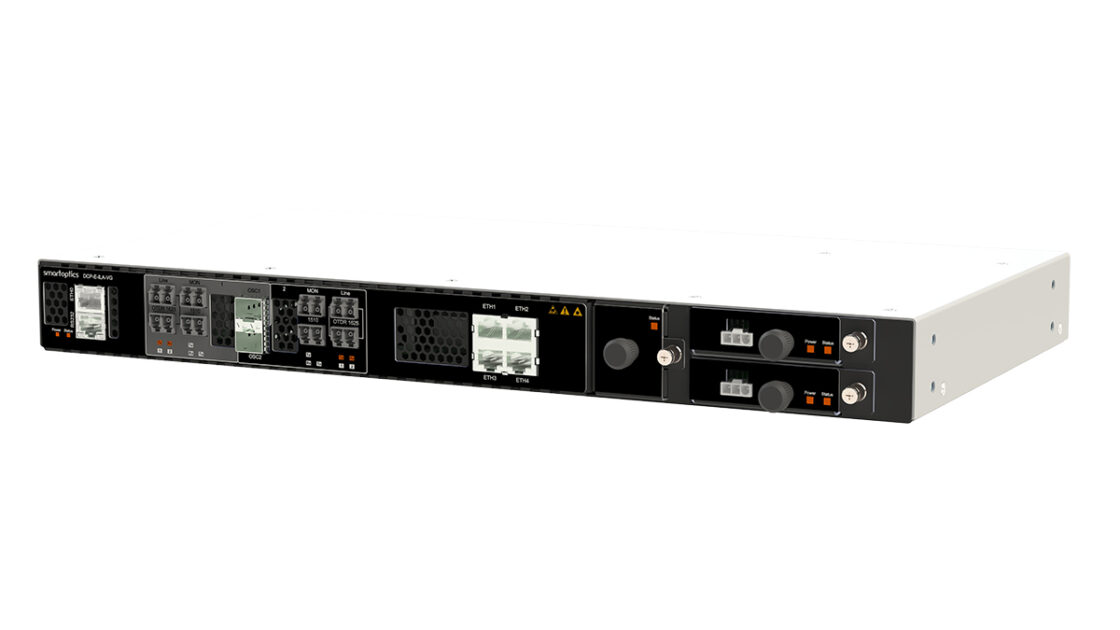

DCP-E is a DWDM platform designed for use in locations with ETSI 300mm requirements. The DCP-E-ILA-VG is an inline amplifier in a 1RU chassis that fits in ETSI 300mm deep cabinets. All components needed for the line amplifier are integrated in the chassis. This includes variable gain amplifiers for East and West, OSC filter (1510nm), OTDR filter (1600-1670nm), VOA, pluggable OSC.

Specification

• 1RU chassis that fits in ETSI300, 300mm environment
• Dual hot swappable DC power
• Hot swappable fan unit
• Extended C-band variable gain amplifiers with settable gain from 10dB to 30dB. Flat gain 10-24dB. Max output power 21dBm.
• Pluggable OSC port for different reach and for OTDR possibility
• OTDR filter port for external 1625nm OTDR sources available on the front
• Management support via SNMP, Netconf and gNMI
